Hybrid Solar Inverters in Pakistan

Solar Hybrid Inverter in Pakistan

We treat our customers as partners. Hybrid Solar Inverters in Pakistan. we welcome partpartnerships such as with the dealers and get the recognition necessary to spur the development of a strong network of community partners and social partners, and entrepreneurs and non-profits.

Hybrid Solar Inverter in Pakistan

HiSEL Power Global Family participation for building a sunnier future for their country.Hisel power deals all kind of Solar Inverters in Pakistan. Also use for home base and industrial commercial

Hybrid Solar Inverter in Pakistan

is use for saving an Electric city. If purchased a Hybrid Solar inveter from Hisel Power Then company gives the more benefit’s for our client. Hisel Hybrid solar Inverter in Pakistan restart auto while Ac is recovering.

Solar Hybrid Inverter in Pakistan performing a Good battery optimization also having a smart design of Battery.

Features
Specifications

Pure sine wave inverter
Surge capacity for inductive loads
Built-in solar charger and configurable AC/solar input priority

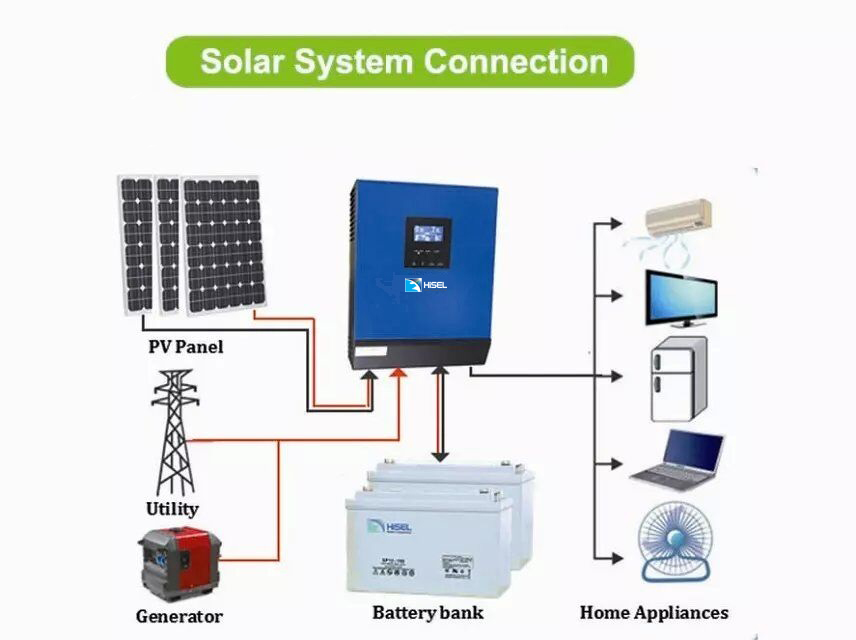

Compatible with grid voltage or generator power
Smart battery charger design for optimized battery performance
Overload, short-circuit, over temperature, low/high voltage protection
Provides power for common appliances like lights, fans, TVs, computers, washing machines, refrigerators, etc.

pur

MODEL	HI0182-IHWP	HI1624-IHWP	HI2424-IHWP	HI3248-IHWP	HI4048-IHWP
Rated Power	800W	1600W	2400W	3200W	4000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	2000VA	4000VA	6000VA	8000VA	10000VA
Efficiency (Peak)	90%	93%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	12 VDC	24 VDC		48 VDC
Floating Charge Voltage	13.5 VDC	27 VDC		54 VDC
Overcharge Protection	15 VDC	30 VDC		60 VDC
SOLAR CHARGER & AC CHARGER
Max PV Array Open Circuit Voltage	40VDC	60VDC		105VDC
Standby Power Consumption	1 W	2 W		2 W
Max Solar Charge Current	50A	50A		50A
Max AC Charge Current	10 A or 20 A	20 A or 30 A		60 A
Max Charge Current	50 A			110 A
PHYSICAL
Dimensions (DxWxH)	95x240x316mm	100x272x355mm		120x295x468mm
Net Weight (kgs)	5.0	6.4	6.9	9.8	9.8
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C – 55°C
Storage Temperature	-15°C – 60°C
